PA Nylon
-
Color
-
-
Diameter
- 1.75mm
-
Weight
- 1kg
隐藏域元素占位
★ Product Features
It is made of special nylon with low crystallinity and high rigidity. The material has high bonding strength and a hot deformation temperature of 80-85 ℃. Nylon has a certain moisture absorption, so online drying and printing are recommended. Drying temperature: 70-75 ℃.
The composite material of PA (nylon) and carbon fiber combines the toughness of nylon and the reinforcement effect of carbon fiber, and has the following characteristics:
1. High strength and rigidity: Carbon fiber significantly enhances the mechanical properties of nylon, with tensile strength and modulus far higher than pure nylon;
2. Lightweight: Low density, over 50% lighter than metal, suitable for weight reduction needs in automobiles, aviation, and other industries;
3. Heat resistance improvement: The heat deformation temperature is increased, and it can be used for a short period of time in environments above 150 ° C;
4. Wear resistance and fatigue resistance: Carbon fiber enhances friction resistance, suitable for moving parts;
5. Dimensional stability: low moisture absorption, reducing deformation of nylon caused by water absorption;
6. Conductivity/Thermal Conductivity: Carbon fiber endows the material with electromagnetic shielding or thermal conductivity functions.

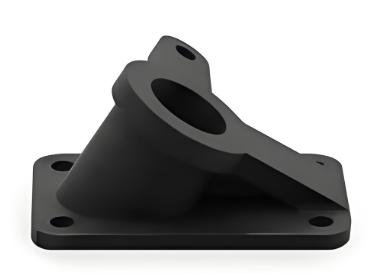

Widely used in gears, drone components, automotive lightweight structures, etc.
★ Printing Parameters
·Filament Diameter: 1.75mm
·Tolerance: ±0.05mm
·Printing Parameters
·Printing Temperature: 235-260℃
·Printing Speed:30-40mm/s
·Idling Speed: 70-100mm/s
·Heated Bed Temperature:60-100 ℃ (special bed require heating)
·Net Weigh: 1KG/ roll
·Gross Weight: 1.3KG/ roll
·Length：1.75MM(1KG)=330M
2.85MM(1KG)=125M
